Waterproof Brushless Motor Design Brief

A waterproof brushless motor is a type of brushless motor that has been designed and manufactured to be resistant to water and moisture. These motors are commonly used in applications where they may be exposed to wet or damp conditions, such as in marine environments, underwater robotics, remote-controlled boats, and various outdoor and industrial applications. Here are some key features and considerations for waterproof brushless motors:

1. Sealed Design:

   • Waterproof brushless motors have a sealed or encapsulated design that prevents water and moisture from entering the motor housing. The seals and gaskets are used to create a watertight barrier.

2. Corrosion-Resistant Materials:

   • To ensure durability in wet environments, these motors are typically constructed using corrosion-resistant materials, such as stainless steel or aluminum, for the housing and components.

3. Specialized Coatings:

   • Some waterproof brushless motors may have specialized coatings or treatments on internal components to provide an extra layer of protection against corrosion and moisture damage.

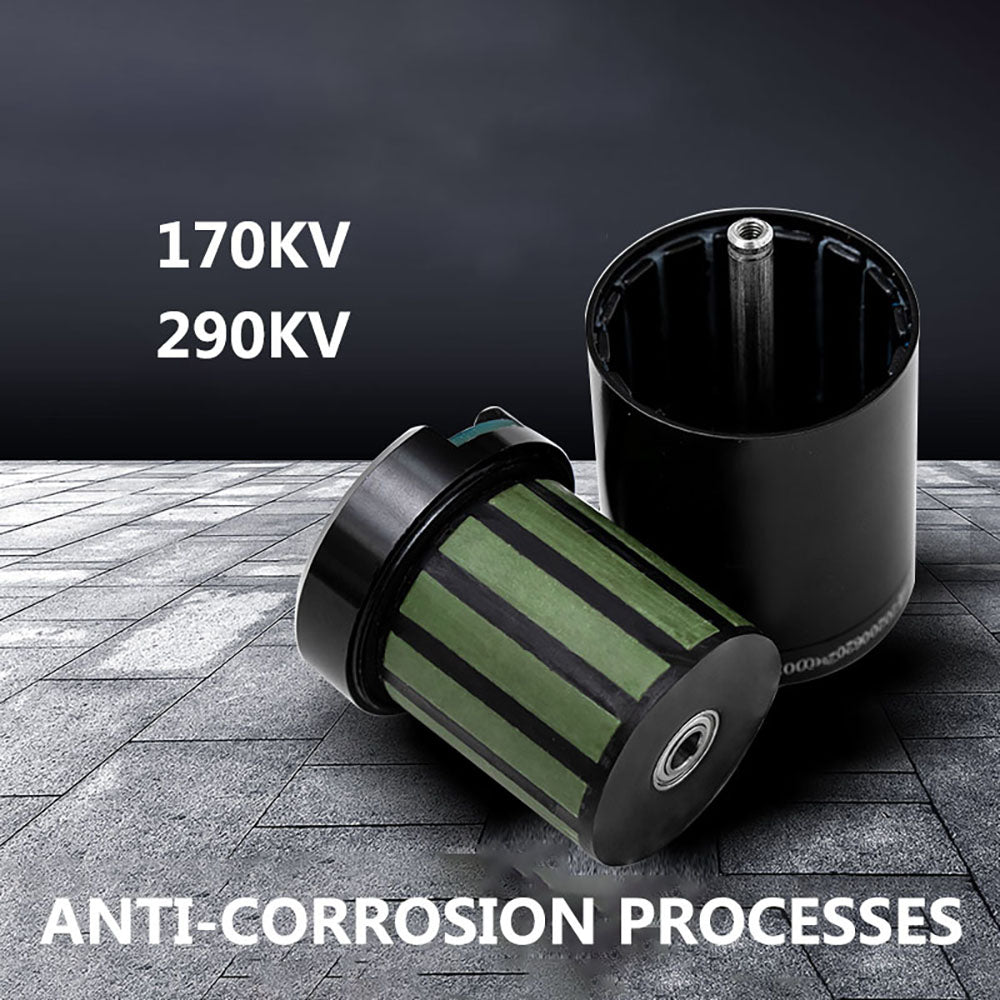

APISQUEEN 3750 motor with epoxy resin waterproof coating on stator and rotor surfaces

1. IP Rating:

   • The level of waterproof protection is often specified by an Ingress Protection (IP) rating. For example, an IP67-rated motor is dust-tight and can withstand immersion in water up to 1 meter deep for a limited time.

2. Applications:

   • Waterproof brushless motors are commonly used in aquatic and marine applications, including underwater drones, remotely operated vehicles (ROVs), boat propulsion systems, bilge pumps, and more.

3. Maintenance:

   • While these motors are designed to be waterproof, regular maintenance is still important to ensure their long-term reliability. This may include rinsing with fresh water after use in saltwater environments and checking seals for wear.

4. Controller Compatibility:

   • When using waterproof brushless motors, it's important to also consider the compatibility of the motor controllers or ESCs (Electronic Speed Controllers). The controller should also be designed to handle wet conditions and be adequately sealed.

5. Cooling Considerations:

   • Waterproof motors may require special cooling mechanisms to dissipate heat generated during operation. Some designs incorporate water cooling or heat sinks to maintain optimal temperatures.

6. Power and Performance:

   • Waterproof brushless motors come in various sizes and power ratings to suit different applications. The power and performance specifications should match the requirements of the specific application.

In summary, waterproof brushless motors are designed to operate reliably in wet or submerged conditions. Their sealed design, corrosion-resistant materials, and specialized coatings make them suitable for a wide range of applications where exposure to water and moisture is a concern. When choosing a waterproof brushless motor, consider factors such as IP rating, materials used, and compatibility with motor controllers to ensure a successful and durable installation.
